Guard Revolution 4.0 control panel, developed in cooperation with Comap, allow the complete control and management of the Onis Visa genset.

• The simple and intuitive interface helps the user to better manage events and performances.
• The user can monitor the generator and interact through the control unit via APP or WEB page via internet.
• Stand-by (AMF) and prime-power (MRS) application in one unit.
• All-in-one intuitive & powerful PC tool for configuration/monitoring

KEY FEATURES:

• Stand-by (AMF) and prime-power (MRS) application in one unit.
• 3.2" Backlit LCD
• ECU support (Tier 4 Final, Stage V)
• RTC with battery back-up (full calendar)
• Power over USB for controller configuration
• Zero power mode
• True RMS measurement
• In-built PLC, complemented with a PLC monitoring tool (InteliConfig)
• Full remote communications support (AirGate 2.0, WSV)
• Internet access using Ethernet / 4G, Modbus TCP/RTU, SNMP v1/v2c
• Active SMS and emails
• Detailed history log with up to 350 records
• Dual Mutual Standby application support
• Remote display
• User setpoints and protections
• 5 languages in the controller & Translator functionality
• User Access Management
• Cyber security improvement
• Alternative configurations
• Multi-purpose schedulers
• Modbus register mapping possibility
• Load shedding, dummy load management User buttons
• Cloud-based monitoring and control via Onis Visa WebSupervisor

MAIN TECHNICAL FEATURES

• Operating temperature: -20 °C to +70 °C
• 8 binary outputs, 8 + 1 binary inputs, 4 analog inputs (U/I/R) +5 V output reference for analog inputs
• 2 high-current E-Stop binary outputs USB Host
• Inbuild RS485
• 2 slots for extension plug-in modules (Modbus, Internet, SMS, inputs/outputs)
• Extension CAN modules

ONIS VISA WEB SUPERVISOR®

OnisVisaWebsupervisor is cloud-based system designed for monitoring and controlling our controllers via the internet. This system offers a number of beneficial features that help optimize revenue for machinery fleets, as each unit of equipment can be individually monitored for all important operation values. WebSupervisor offers equipment owners a number of powerful reporting tools allowing monthly summaries of availability and optimizes the maintenance scheduling and asset utilization from the individual equipment to the whole fleet. The information generated from each controller can be archived on the central server for future analysis and trend evaluation.

What is it used for?

• REAL TIME CHECKING OR REMOTE CONTROLLING
• GEOLOCALIZATION AND FLEET TRACKING
• GENSET FUNCTION MONITORING AND DATA RECORDIN

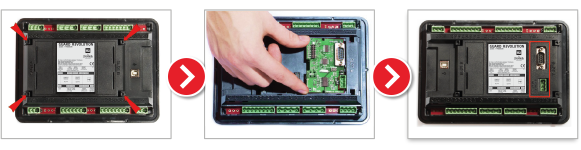

UPGRADE YOUR GUARD REVOLUTION WITH THE PLUG AND PLAY OPTIONS

A plug and play Solution for the additional extension modules to meet all customer needs.

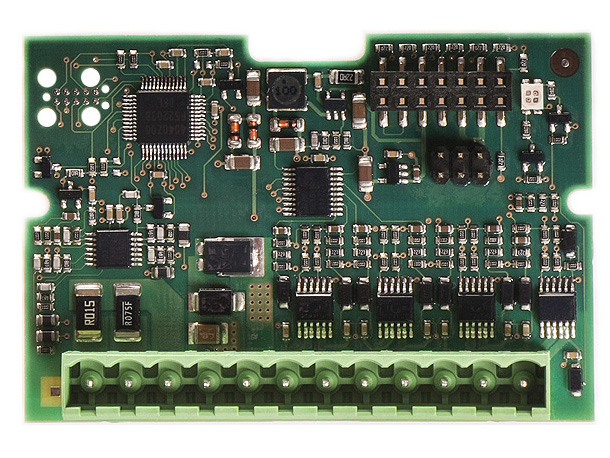

IN/OUT EXPANSION MODULE

EM-BIO8-EFCP

Binary I/O plug-in module with earth fault current protection measurement.

COMMUNICATION EXPANSION MODULE

CM2-4G-GPS

An easy-to-use and highly efficient solution for connecting gen-set controllers online via 4G network. Enables remote monitoring and tracking of the gen-set’s exact position, helping to optimise its uptime and reduce maintenance costs.

• Reliable 4G connectivity with 2G/3G fallback
• GPS location for geotracking or geofencing
• Alarm notification via SMS or email
• WebSupervisor for remote monitoring

CM3-Ethernet

An easy-to-use communication solution to help connect gen-set controllers online via wired connection. This plug-in communication module enables remote monitoring and control for the gen-set controllers and provides access to various gen-set values - engine values, generator, load and Mains electrical values - alarms and history from anywhere.

• Wired internet connection
• Building Management System (BMS) integration (Modbus, SNMP)
• Email alarm notification
• WebSupervisor for remote monitoring
